Manufacturer and Exporter of the following products in Pune, Maharashtra, India:

Pneumatic Control Valves, Piston Valves ( SW/SCR ), Piston Valves ( Flanged End ), Cast Steel Y Type Strainers (Screwed Ends / Socket Weld) , Cast Steel Y Type Strainers (Flanged End), Moisture Separators, Pressure Relief Cast Steel Safety Valves, Steam Pressure Reducing Stations, PRS, Flow Check Valves, PRDS Valves, Combined Pressure Reducing Cum De-Superheating Valves, Steam Traps, Forged Valves, Three Way Control Valves, Pressure Relief Safety Valves, Condensate Return Pump Systems, Flash Steam Separators, Ball Float Steam Traps

Forged Valves - Gate & Globe



Forged Valves - Gate & Globe

Gate Valve

Forged Valves - Gate & Globe

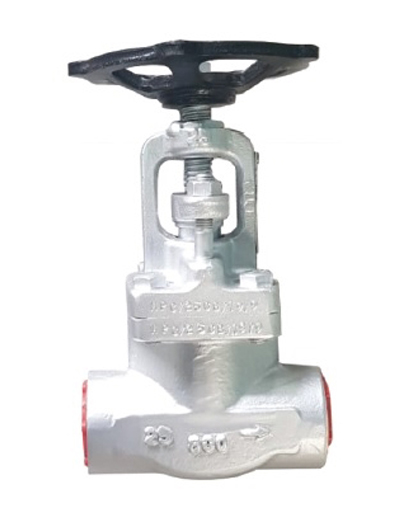

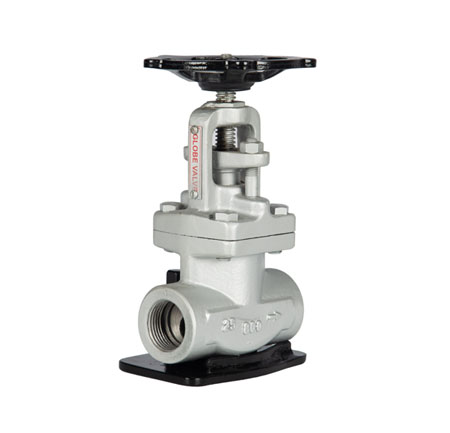

Globe Valve


Technical Specifications :

Size 15 NB, 20 NB, 25 NB, 40 NB & 50 NB.
Rating IBR Approved ANSI Class 800
Options IBR / Non-IBR
MOC
ASTM A105
End Connections Screwed BSPT & Socket Weld
Max. Pressure 139 kg/cm2
Max. Temperature 427oC

divider

Forged Non - Return Valves


Technical Specifications :

Sizes Available : 15 NB, 20 NB, 25 NB, 40 NB & 50 NB. Class 800
Options : IBR OR Non - IBR.
Material : Forged Steel Body With SS Internals
End Connections :
Screwed BSPT & Socket Weld
Max. Temperature : 427o C
Max. Pressure 139 kg / cm2
